HX20 2 Ton Excavator Small Super Micro Mini Garden حفار

Small 2 ton excavator, using big brand engine, Laidong, Yanmar or Kubota.

HX20 is the leader among small and affordable excavators.

  • Operate weight: 2000kg
  • Bucket Capacity: 0.06m³
  • Optional engine: Kubota/Yanmer/Laidong
  • Emission standard: EPA 4 & Euro 5
  • CE: Approved

معلومات إضافية

نموذج

HX20

الطول الكلي

3600 ملم

العرض الكلي

1060 mm

الارتفاع الكلي

2200 ملم

وصف مفصل

تفاصيل المنتج

Excavator Banner

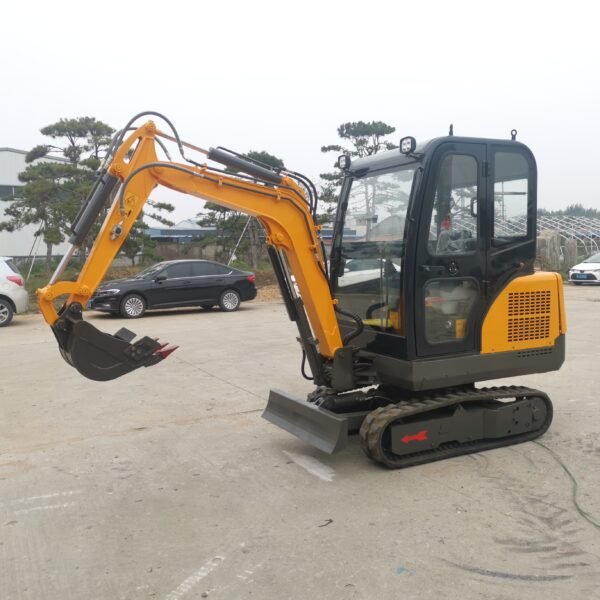

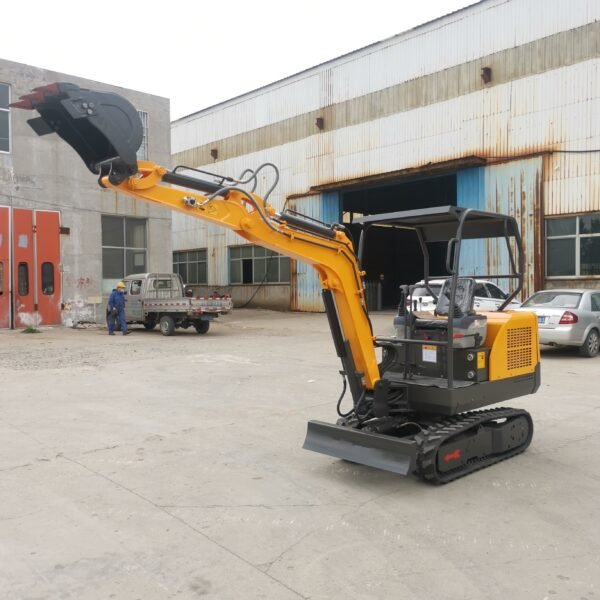

HX20 Compact 2 Ton Excavator With Closed Cab

Who We Are:
Shandong HIXEN Machinery Co., Ltd is one of China leading manufacturers of mini excavators. The products has got CE approved, satisfying Euro5

and EPA Tier4 emission standard and have been supplied to over 30 countries with great reputation.

ما نقدمه:
1. منتجات Mini Excavators , 1 ton Excavator , 2 ton Excavator, 3 ton Excavator, 4 Ton Excavator. Kubota engine are optional.
2. ما قبل البيع والبيع المتوسط ​​وخدمة ما بعد البيع.
3. تدريب تشغيل الماكينة ، الصيانة اليومية مع كتيبات التعليمات.
4. 7*24 الدعم الفني لأي مشكلة في التصوير مع أجهزتنا.
5. خدمة OEM/ODM لتجار الجملة الحفارات/شركات التداول/الموزعين/الوكلاء المحليين.

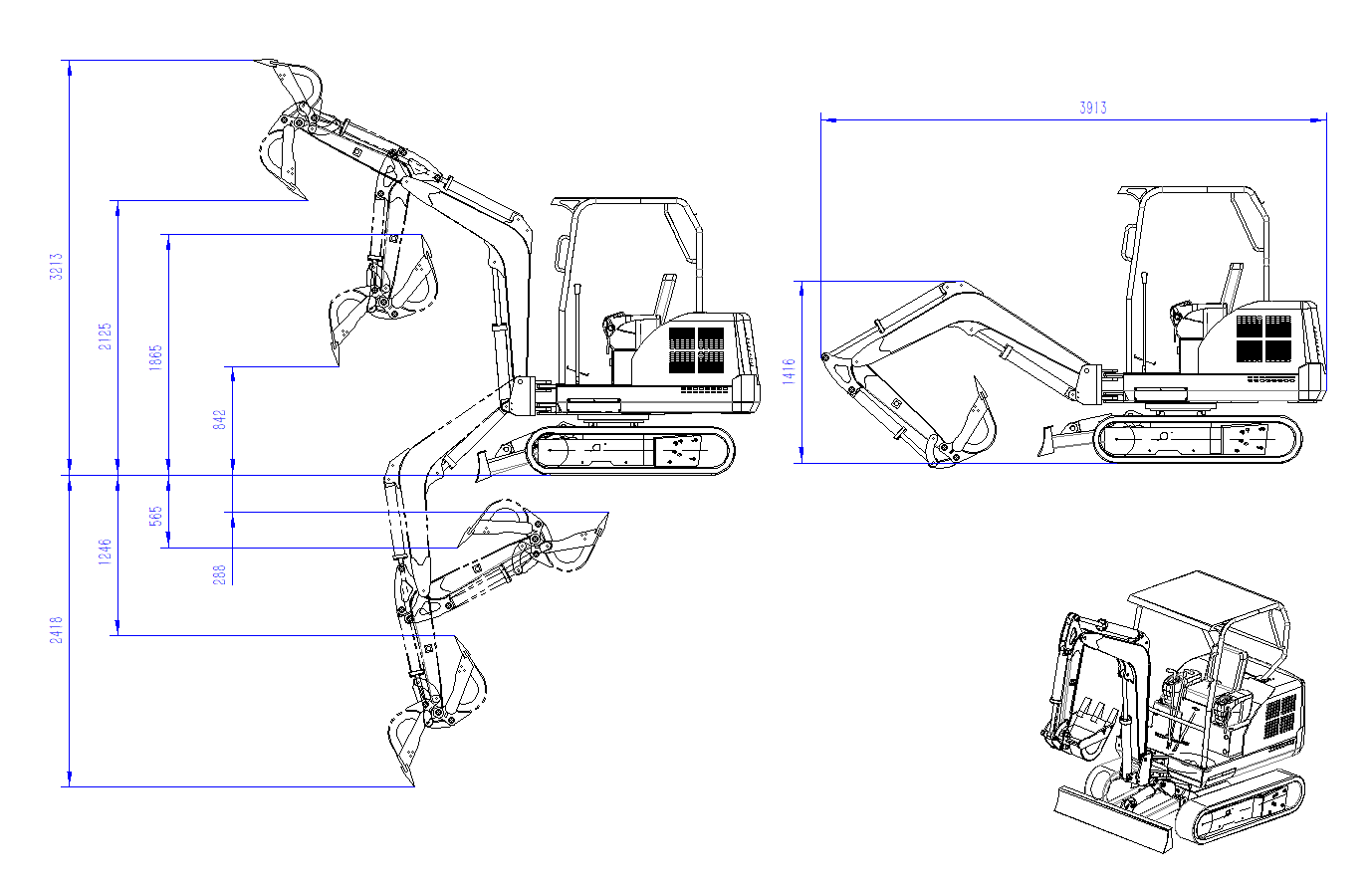

HX20 2 Ton Excavator Product parameters
نموذج HX20
سعة دلو 0.06m³
محرك Laidong/Changchai/Yanmar/Kubota
Walking speed 2.5 Km/h
سرعة الدوران 10r/min
الطول الكلي 3600 ملم
العرض الكلي 1060 mm
الارتفاع الكلي 2200 ملم
Crawler length 1900 ملم
Crawler width
230 mm
Body width 1060 mm
Maximum digging height 3365 mm
Maximum dumping height 2385 mm
Maximum digging depth 2050 mm
Maximum digging radius 3860 mm
Platform clearance to ground 458 mm
Swing angle 360 درجة
Turning radius 1200 mm
Climbing gradient 30 درجة
Bulldozer maximum raising height 230 mm
Bulldozer maximum digging depth 275 mm
Pump 18 Mpa, 2500rpm

منتج Features

1. The mini excavator is equipped with top brand engine such as Yanmar or Kubota, satisfying the EURO5 and EPA Tier4 emission standard.

2. The hydraulic system adopts the load-sensitive mechanism, making each move operated smoothly with help of the branded pump.

3. With many years’ manufacturing experience, the engines and hydraulic systems are matched perfectly, so the mini excavator has enjoyed the best

efficiency and performance.

4. The whole body adopts the reinforced material, making it stronger from the initial.

5. The scientifically compact design of each model, increasing its reliability while decreasing the possibilities of machine breakdown.
6. Most models are standard with hydraulic control and boom swing functions. So the mini excavators could make more moves easily at the lowest time.

Also, it releases hard work of the operators.

7. With retractable undercarriage or chassis, the mini excavator could pass through the narrow space easily. Together with double speed motor, it can

walk faster improving all work efficiency.

8. Standard with one backup hydraulic oil pump, so that many tools such as Hammer, Auger, Rake, Thumb, Grapple etc. could be attached to complete

various jobs.

HX20 2 Ton Excavator Standard and Optional Configuration

Engine : Laidong,Yanmar,Kubota

Control: Hydraulic pilot or mechanical

Cabin: Open cabin or canopy and close cabin

Track: Rubber and steel track/crawler are optional

Air Conditioner: Air conditioning system could be equipped within the enclosed cabin.

Chassis: The retractable track or chassis could be chose.

Motor: High-low two speed motor is optional

Color: Yellow,Orange,Red,Blue,Green,Black.Etc

ورشة الإنتاج

  1. Confirm ordering quantity so that we use wooden box or load into container.
  2. Make it clear how the quantity each container could load according to size of each model.
  3. Decide how to transport according to our trade terms.
  4. With the detailed address, deliver the goods to your destination port.
1. أي نوع من يمكن قبول شروط الدفع؟
نحن نقبل وديعة أولية بنسبة 30 ٪ أن نبدأ الإنتاج ، و 70 ٪ دفع عندما تكون البضائع جاهزة قبل التسليم من خلال t/t. L/C أو ضمان التجارة

على Alibaba يمكن أيضًا قبولها. تحتاج الأساليب الإضافية إلى التفاوض.

2. ماذا ستكون شروط التداول الدولية التي يمكنك قبولها عندما نضع الصفقة؟
نحن نعمل على FOB و CFR و CIF و DDU و DDP وما إلى ذلك. لدينا معيد الشحن المهني لترتيب جميع عملية الشحن ، حتى من الباب إلى الباب.

وفي الوقت نفسه ، يمكنك أيضًا التعامل مع النقل بنفسك.

3. ما هي فترة التسليم؟
Usually we can deliver the goods within 5 working days after receiving the deposit. If your ordering quantity is large, that need to be further negotiated.

تعتمد فترة الشحن على مسافة منفذ وجهتك ، والتي ستكون واضحة أثناء محادثتك مع فريقنا التجاري.

4. ما هو الحد الأدنى لترتيب كمية؟
The MOQ is 1 set. And we can help pack it inside the wooden box for LCL shipping. While, large quantity is always welcomed, since the shipping cost could

be lower comparatively.

5. هل يمكنك جعل شعار علامتنا التجارية أو لون مخصص على المنتجات؟
نعم بالتأكيد. نحن نقبل أوامر OEM/ODM.

6.How long does it usually take for me to receive the mini 2 ton excavator?
That depends on whether you want to do customization your mini diggers or not, and also depends on the speed of customs clearance and logistics, but we can

guarantee to ship regular models within 5 working days, and some in stock ready for delivery.

7. How can you guarantee the quality of your mini 2 ton excavator?
We have been in the mini digger industry for over 10 years, the technology is quite mature. Each product can only be delivered after our strict test and commission.

أيضا ، أثبت الرضا من المستخدمين النهائيين جودته.

8. How to operate a mini 2 ton excavator?
When we deliver the mini excavators, the instruction manuals will be provided, with basic operation indicates, and repair and maintenance instructions. It will be

quite easy to operate.

9. Which model micro diggers is the most popular one?
This is a great and tough question. The hot-selling models vary in different countries. For us, the 2 ton excavator is always very popular, but the 1-ton digger enjoyed

a great market in recent years. Anyway, please do some investigation on your local market, we can also provide some suggestions according to your specific requirement.

10. What kind of attached tools could be equipped to the mini 2 ton excavator?
Basically, almost all the tools used on hydraulic excavators could be used on our micro diggers. The most common ones such as Auger, Breaking Hammer, Log Grapple,

Ripper, Rake, Thumb, Wide Bucket, Narrow Bucket, Fork, etc.
