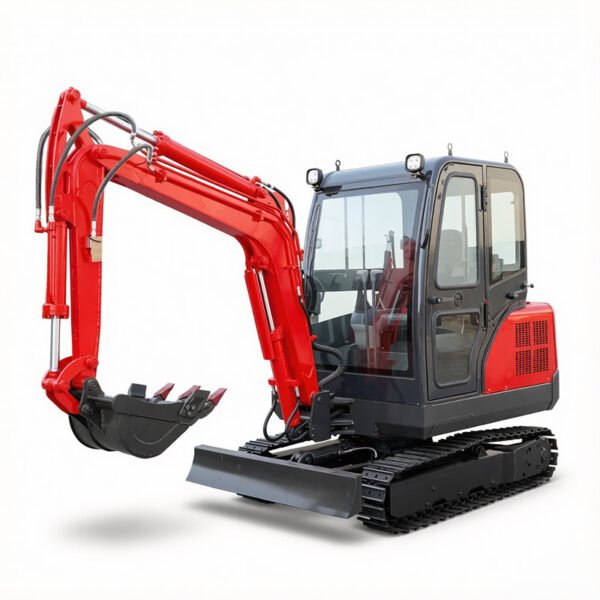

HX30 3-тонный экскаватор на продажу Евро 5 Двигатель Kubota Compact Лучшая цена мини-экскаватора

Small construction machinery has played a greater advantage in municipal engineering, transportation and other construction and has been rapidly developed. Small excavators have made great contributions to saving manpower and material resources in these projects, meeting various urban operation requirements.

  • Operate weight: 3000kg
  • Bucket Capacity: 0.1m³
  • Optional engine: Kubota/Yanmar/Laidong/Changchai
  • Emission standard: EPA tire 4 & Euro 5
  • CE: Approved

Additional information

Model

HX30

Total length

4180 mm

Total width

1350 mm

Total height

2200 mm

Detailed Description

Product Details

HIXEN 3 TON Digger

HX30 3 Ton Digger Product parameters

Model HX30 3 Ton Digger
Bucket capacity 0.1m³
Engine Laidong/Changchai/Yanmar/Kubota
Walking speed 2.7 Km/h
Rotation speed 10r/min
Total length 4180 mm
Total width 1350 mm
Total height 2200 mm
Crawler length 2000 mm
Crawler width
230 mm
Body width 1350 mm
Maximum digging height 3900 mm
Maximum dumping height 2600 mm
Maximum digging depth 2500 mm
Maximum digging radius 4040 mm
Platform clearance to ground 458 mm
Swing angle 360°
Climbing gradient 30°

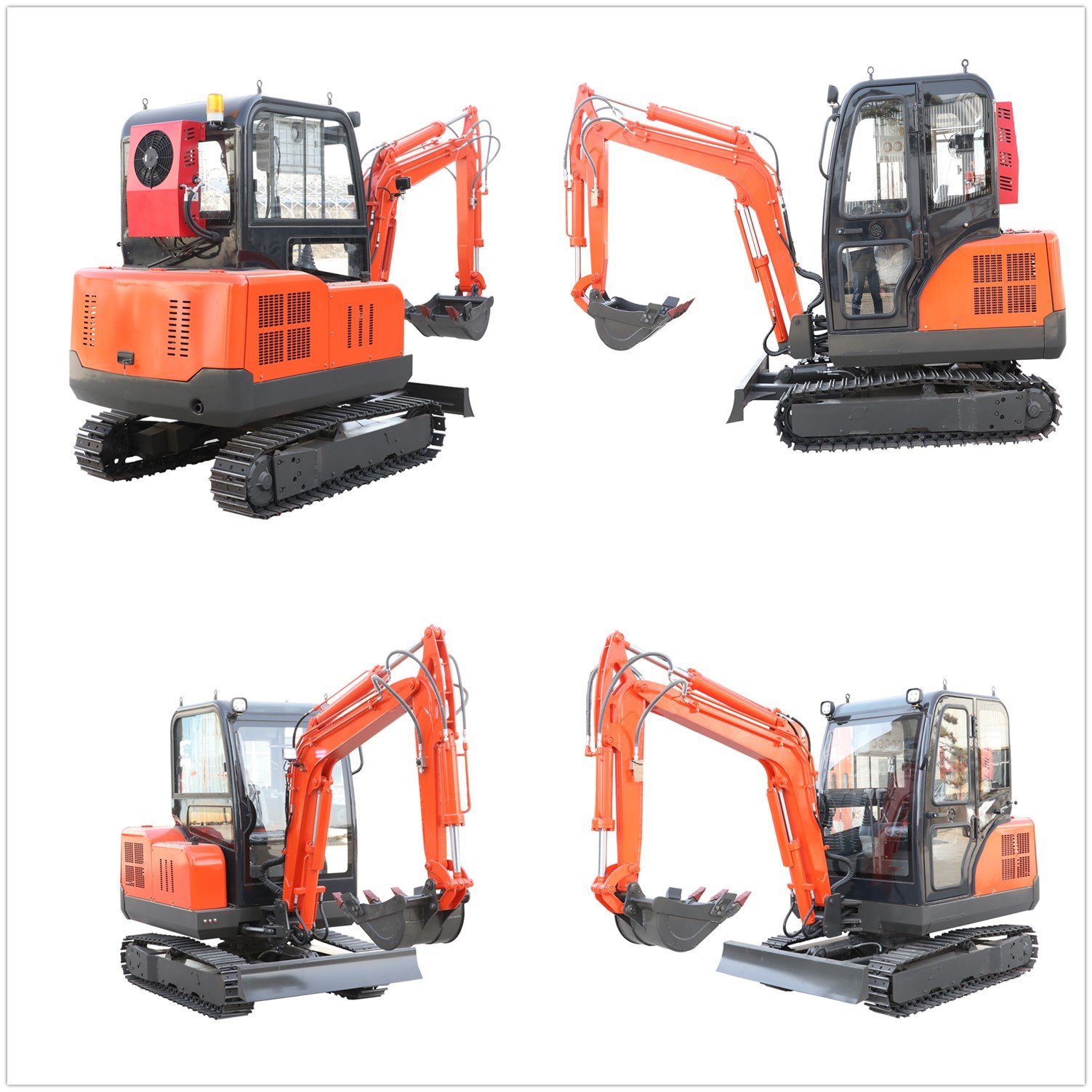

HIXEN 3 Ton Digger Detailed Pictures

3 Ton Mini Digger

3 Ton Mini Digger

3 Ton Mini Digger

Продукт Features

1. The mini excavator is equipped with top brand engine such as Yanmar or Kubota, satisfying the EURO5 and EPA Tier4 emission standard.

2. The hydraulic system adopts the load-sensitive mechanism, making each move operated smoothly with help of the branded pump.

3. With many years’ manufacturing experience, the engines and hydraulic systems are matched perfectly, so the mini excavator has enjoyed the best

efficiency and performance.

4. The whole body adopts the reinforced material, making it stronger from the initial.

5. The scientifically compact design of each model, increasing its reliability while decreasing the possibilities of machine breakdown.
6. Most models are standard with hydraulic control and boom swing functions. So the mini excavators could make more moves easily at the lowest time.

Also, it releases hard work of the operators.

7. With retractable undercarriage or chassis, the mini excavator could pass through the narrow space easily. Together with double speed motor, it can

walk faster improving all work efficiency.

8. Standard with one backup hydraulic oil pump, so that many tools such as Hammer, Auger, Rake, Thumb, Grapple etc. could be attached to complete

various jobs.

HIXEN HX30 3 Ton Digger Configuration

Engine : Changchai,Yanmar,Kubota

Control: Hydraulic pilot or mechanical

Cabin: Open cabin or canopy and close cabin

Track: Rubber and steel track/crawler are optional

Air Conditioner: Air conditioning system could be equipped within the enclose cabin.

Chassis: The retractable track or chassis could be chose.

Motor: High-low two speed motor is optional

Color: Yellow,Orange,Red,Blue,Green,Black.Etc

Production Workshop

  1. Confirm ordering quantity so that we use wooden box or load into container.
  2. Make it clear how the quantity each container could load according to size of each model.
  3. Decide how to transport according to our trade terms.
  4. With the detailed address, deliver the goods to your destination port.
1. What kind of payment terms can be accepted?
We accept 30% initial deposit that we start the production, and 70% payment when the goods are ready before delivery through T/T. L/C or Trade Assurance

on Alibaba could also be accepted. Further methods need to be negotiated.

2. What will be the international trading terms can you accept when we make the deal?
We work on FOB,CFR,CIF, DDU, DDP etc. We have the professional shipping forwarder to arrange all the shipping process, even the door to door delivery.

Meanwhile, you can also handle the transportation yourself.

3. What is the delivery period?
Usually we can deliver the goods within 5 working days after receiving the deposit. If your ordering quantity is large, that need to be further negotiated.

The shipping period depends on your destination port distance, which will be clear during your conversation with our commercial team.

4. What is the minimum ordering quantity?
The MOQ is 1 set. And we can help pack it inside the wooden box for LCL shipping. While, large quantity is always welcomed, since the shipping cost could

be lower comparatively.

5. Could you make our brand LOGO or color customized on the products?
Yes, sure. We accept the OEM/ODM orders.

6.How long does it usually take for me to receive the 3 ton digger?
That depends on whether you want to do customization your mini diggers or not, and also depends on the speed of customs clearance and logistics, but we can

guarantee to ship regular models within 5 working days, and some in stock ready for delivery.

7. How can you guarantee the quality of your 3 ton digger?
We have been in the mini digger industry for over 10 years, the technology is quite mature. Each product can only be delivered after our strict test and commission.

Also, the satisfaction from end-users proved its quality.

8. How to operate a 3 ton digger?
When we deliver the mini excavators, the instruction manuals will be provided, with basic operation indicates, and repair and maintenance instructions. It will be

quite easy to operate.

9. Which model micro diggers is the most popular one?
This is a great and tough question. The hot-selling models vary in different countries. For us, the 2-ton model and 3 ton digger is always very popular, but the 1-ton digger enjoyed

a great market in recent years. Anyway, please do some investigation on your local market, we can also provide some suggestions according to your specific requirement.

10. What kind of attached tools could be equipped to the 3 ton digger?
Basically, almost all the tools used on hydraulic excavators could be used on our micro diggers. The most common ones such as Auger, Breaking Hammer, Log Grapple,

Ripper, Rake, Thumb, Wide Bucket, Narrow Bucket, Fork, etc.
