HX25T Zero Tail Excavator

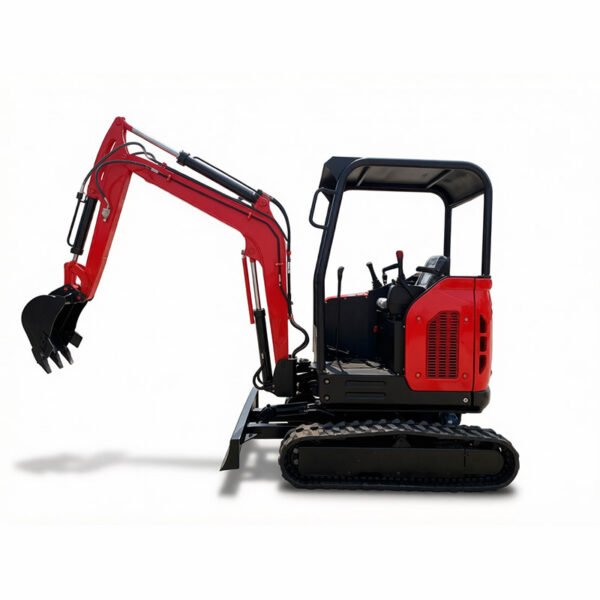

HX25T zero tail swing excavator

Working close to walls, fences, or underground utility lines? The HX25T zero tail swing mini excavator is built for exactly that. Unlike conventional tail swing excavators, the HX25T’s rear end stays within the width of its tracks during a full 360° rotation — so you can dig, rotate, and reposition without worrying about the counterweight hitting nearby structures.

At 2160kg, the HX25T delivers the digging power of a 2.5-ton class machine while keeping the compact footprint needed for residential landscaping, utility trenching, fence-line work, and tight job sites where standard excavators simply don’t fit.

HX25T Technical Specifications

Features of the HX25T Excavator

Zero Tail Swing Design
The HX25T’s rear counterweight rotates within the track width, allowing safe 360° operation right next to walls, vehicles, or other obstacles — no risk of rear-end collision.

Reliable Power, Engine Options
Powered by a Changchai 390 or Kubota engine, delivering 25kW at 2400rpm. Choose the engine brand that fits your service network and budget.

Solid Digging Performance

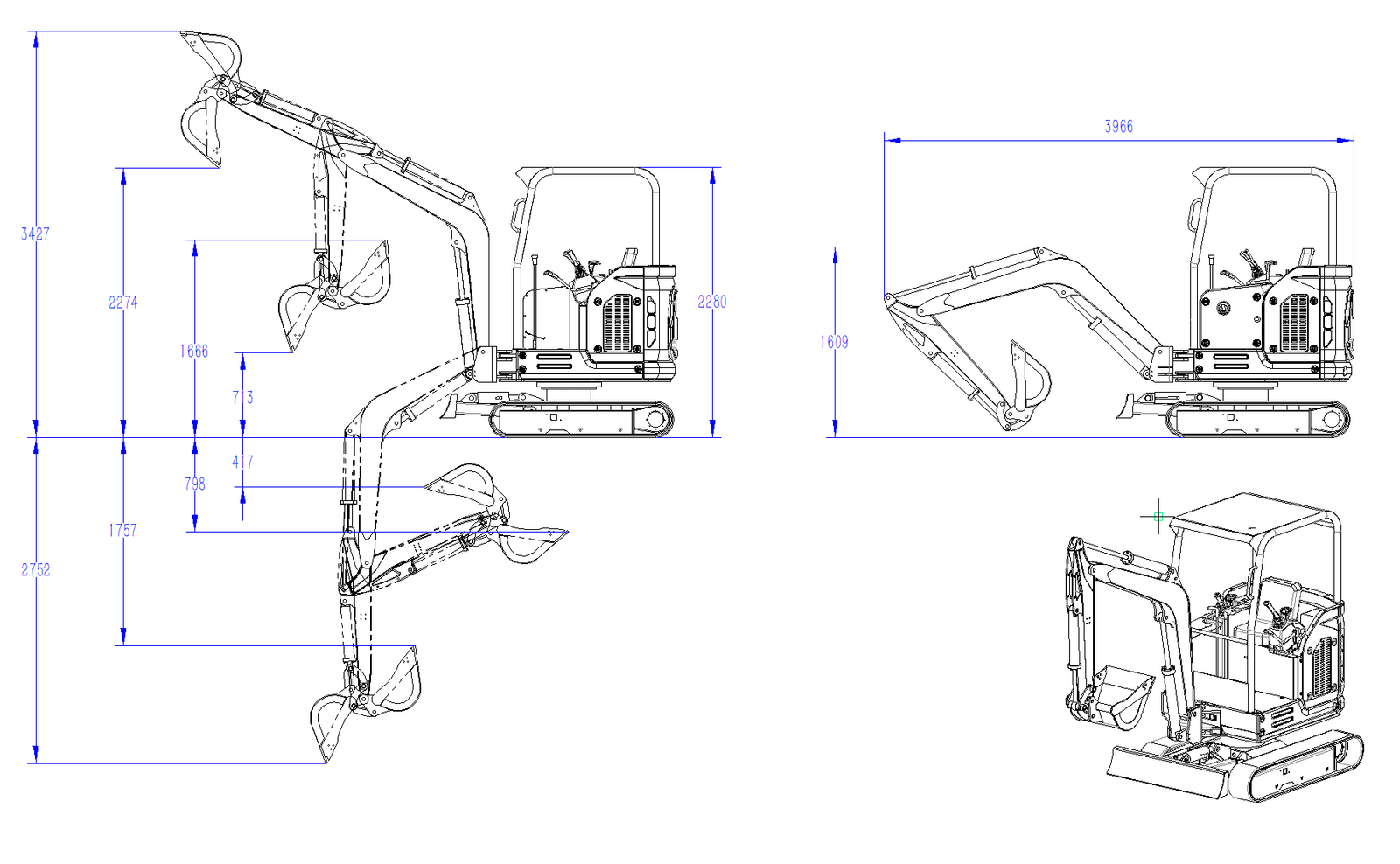

Maximum digging depth of 2752mm and maximum digging height of 3427mm cover most trenching, foundation, and landscaping tasks in a single pass.

Stable & Maneuverable
With a 230mm crawler width and 200mm ground clearance, the HX25T handles soft or uneven ground confidently, while a 30° climbing gradient gets you up slopes and loading ramps with ease.

Flexible Boom Swing
45° left / 55° right boom swing angle lets you dig alongside trenches or walls without repositioning the whole machine — saving time on narrow job sites.

Compact Footprint, Big Capacity
At 3966mm long and only 1350mm wide, the HX25T fits through standard gates and gaps while still offering a 0.07m³ bucket capacity for efficient material handling.

Часто задаваемые вопросы

• What does “zero tail swing” mean on the HX25T?
  It means the rear of the upper structure stays within the width of the crawler tracks during a full rotation, so the excavator can safely work right next to walls, fences, or other equipment without the counterweight swinging beyond the track line.
• Is the HX25T suitable for working in narrow spaces?
  Yes. With an overall width of only 1350mm and a zero tail swing design, the HX25T is designed for residential yards, narrow alleys, and utility work where conventional excavators can’t operate safely.
• What engine options are available for the HX25T?
  The HX25T can be equipped with either a Changchai 390 or Kubota engine, both delivering 25kW at 2400rpm, giving buyers flexibility based on regional service availability and budget.
• How deep can the HX25T dig?
  The HX25T has a maximum digging depth of 2752mm, suitable for utility trenching, small foundation work, and general landscaping tasks.
