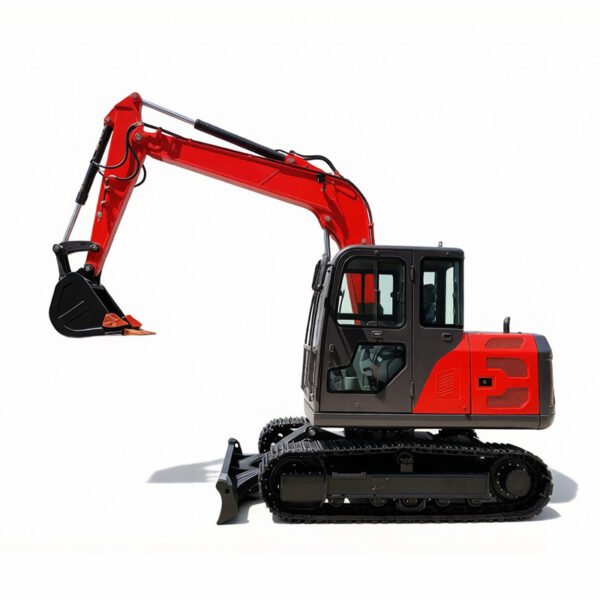

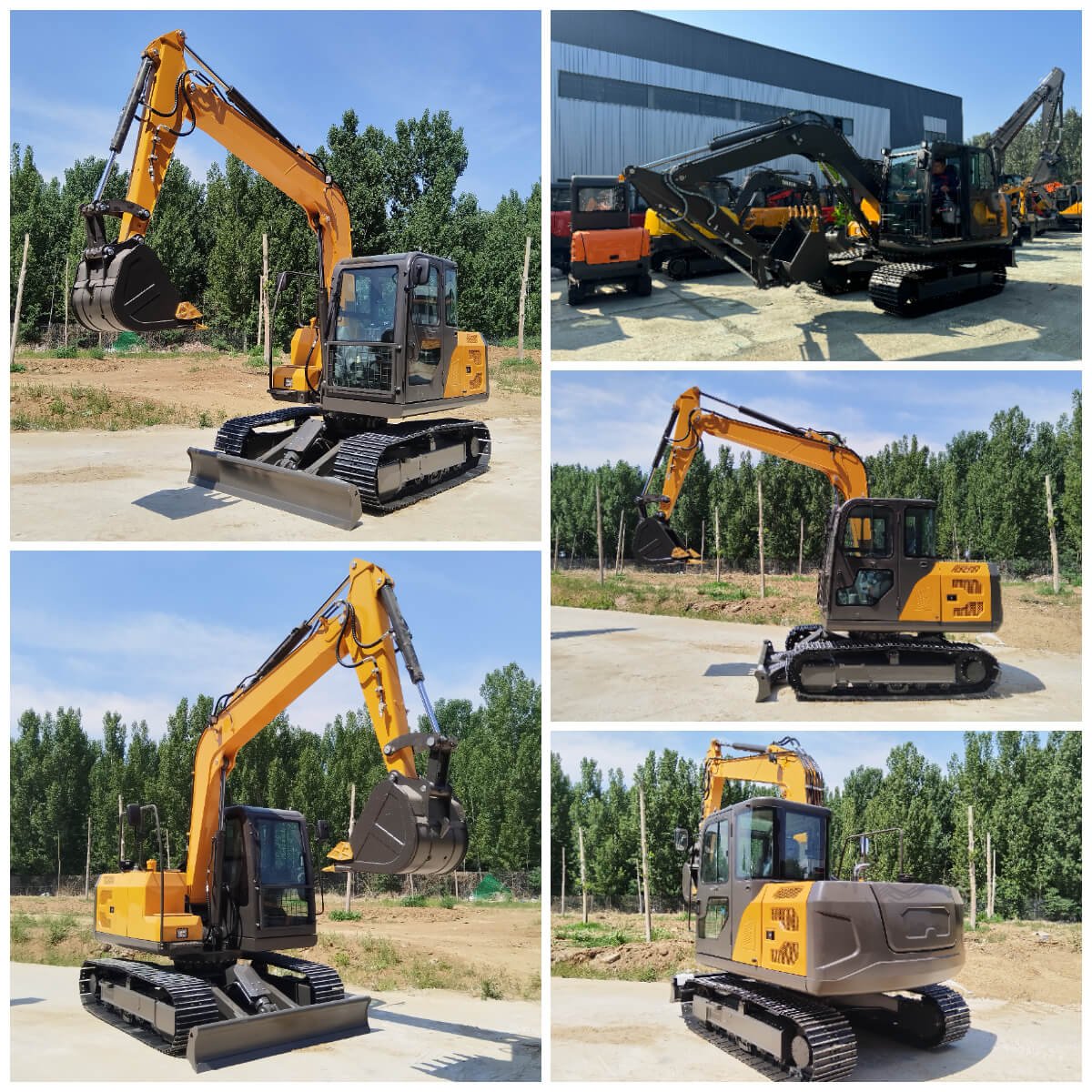

Hixen HX75 7 ton excavator delivers a balanced operating weight of 7500kg, powered by a YANMAR 4TNV94L engine producing 36.2kW. Equipped with hydraulic pilot servo controls and a 0.28m³ standard bucket, it’s built for demanding digging and trenching tasks.
The HX75 sits as a strong mid-size option among Hixen’s excavator lineup, offering more digging power than smaller models while remaining compact enough for general construction sites. Fuel-efficient and reliable, it balances power and maneuverability for daily jobsite operation.
Commonly used in road construction, utility work, demolition, pipeline laying, and general earthmoving projects.
Hixen excavators are CE-certified. HX75 meets China Stage III emission standards, with options available for other regional compliance — please confirm current certification details with our sales team.
| أداء | مواصفة |
|---|---|
| Bucket capacity (m³) | 0.28 |
| Rotation speed (rpm) | 0-11 |
| Max. climbing (°) | 35 |
| Bucket Max. digging force (KN) | 48 |
| Rod Max. digging force (KN) | 56 |
| Engine model | Yanmar 4TNV94L |
| Power/speed (KW/rpm) | 36.2/2000 |
| ضغط النظام (ميجا باسكال) | 27 |
| Working range | |
| Max. digging height (mm) | 7023 |
| Max. dumping height (mm) | 5195 |
| Max. digging depth (mm) | 3898 |
| Vertical digging depth (mm) | 2968 |
| Max. digging radius (mm) | 6182 |
| Min. turning radius (mm) | 1740 |
| Dimension | |
| طول عرض Height (mm) | 6054*2216*2672 |
| Cabin height (mm) | 2672 |
| قاعدة العجلات (مم) | 2209 |
| Wheel track (mm) | 1745 |
| Min. clearance to ground (mm) | 375 |
| Tail turning radius (mm) | 1730 |
1. Products of Midi Excavator from HX65 to HX230
2. ما قبل البيع والبيع المتوسط وخدمة ما بعد البيع.
3. تدريب تشغيل الماكينة ، الصيانة اليومية مع كتيبات التعليمات.
4. 7*24 الدعم الفني لأي مشكلة في التصوير مع أجهزتنا.
5. خدمة OEM/ODM لتجار الجملة الحفارات/شركات التداول/الموزعين/الوكلاء المحليين.
How much can a 7 ton excavator dig?
The HX75 7 ton excavator has a maximum digging depth of 3898mm and a maximum digging radius of 6182mm, making it suitable for medium-depth trenching and foundation work.
How heavy is the HX75 7 ton excavator?
The HX75 has an operating weight of 7500kg, with a fuel tank capacity of 120L and hydraulic oil tank of 100L.
What engine does the HX75 use?
HX75 is equipped with a YANMAR 4TNV94L engine, delivering 36.2kW at 2000rpm, meeting China Stage III emission standards.
How many HX75 units fit in a container?
A standard 40ft container holds 2 units of HX75, optimizing shipping costs for bulk orders.
What attachments are compatible with HX75?
HX75 comes pre-installed with a hydraulic hammer pipeline, supporting breaker attachments along with standard buckets for various excavation tasks.
