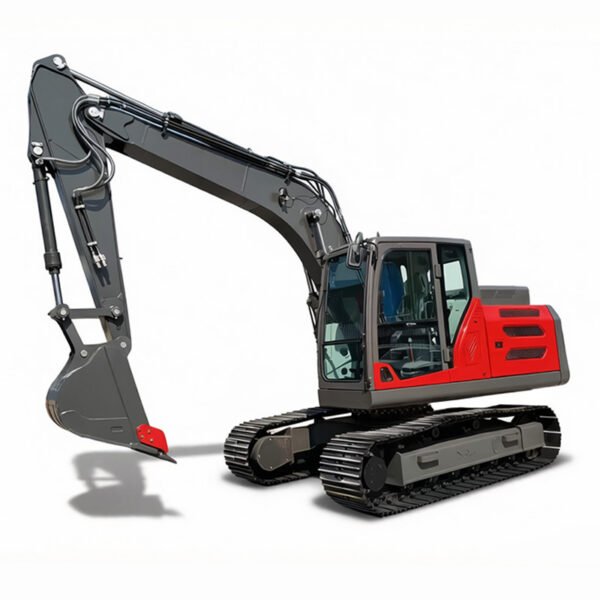

The HX150 is a 15 ton class crawler excavator engineered for demanding earthmoving, infrastructure, and construction applications. Powered by a Cummins 4BTA3.9-C125-II diesel engine delivering 93kW (125HP) at 2200rpm, the HX150 combines strong digging performance with dependable fuel efficiency, making it a trusted choice for contractors and equipment dealers worldwide.
With a standard bucket capacity of 0.6m³, a maximum bucket digging force of 91KN, and an arm digging force of 55KN, the HX150 handles heavy-duty trenching, grading, and material handling tasks with ease. Its hydraulic system operates at 32mpa, ensuring smooth and responsive control across all working conditions.
The undercarriage is built for stability and traction, featuring 500mm wide track shoes, 44 track shoes per side, 2 upper rollers, and 6 bottom rollers per side — providing excellent ground pressure distribution on soft or uneven terrain. A 30° maximum grade ability allows the HX150 to perform reliably on slopes and rough job sites.
At an operating weight of 13,500kg and with a 252L fuel tank, the HX150 is designed for extended working hours with minimal downtime, reducing total cost of ownership for fleet operators and rental companies.
| Artículo | Especificación |
|---|---|
| Modelo | HX150 |
| Estándar de emisión | China Stage II |
| Motor | Cummins 4BTA3.9-C125-II |
| Power / Rotation Speed | 93kW (125HP) @ 2200rpm |
| Max. Travel Speed | 2.6 / 4.2 km/h |
| Track Shoe Width | 500mm |
| Track Shoes per Side | 44 pcs |
| Standard Bucket Capacity | 0.6m³ |
| Swing Speed | 12 rpm |
| Max. Grade Ability | 30° |
| Max. Bucket Digging Force | 91KN |
| Max. Arm Digging Force | 55KN |
| Hydraulic System Pressure | 32mpa |
| Peso de la máquina | 13,500KG |
| Fuel Tank | 252L |
Road construction, building foundation excavation, pipeline laying, mining support, land clearing, and general earthmoving for export markets requiring mid-to-large class excavators.
